SPJ160C
FANG YUAN
Main Features:
Bottom discharge – outperforms conventional side discharge by eliminating material compaction and flash; no side gate opening is required, which preserves the overall mechanical integrity of the cylinder and ensures roundness. Discharge speed is increased by 40%.
Special steam-permeable plate design – the steam-permeable plates can be removed simply by loosening the bolts from the outside of the cylinder, without needing to enter the vessel.
PID-based heating control – achieves 35% steam savings per ton of material compared with other domestic models.
User-friendly fluidized bed design – facilitates easy cleaning and maintenance.
All foaming parameters and recipes can be stored in the PLC – operators only need to recall the desired recipe; pre-expansion quality is no longer dependent on operator skill.
All electrical components are sourced from internationally recognized brands.

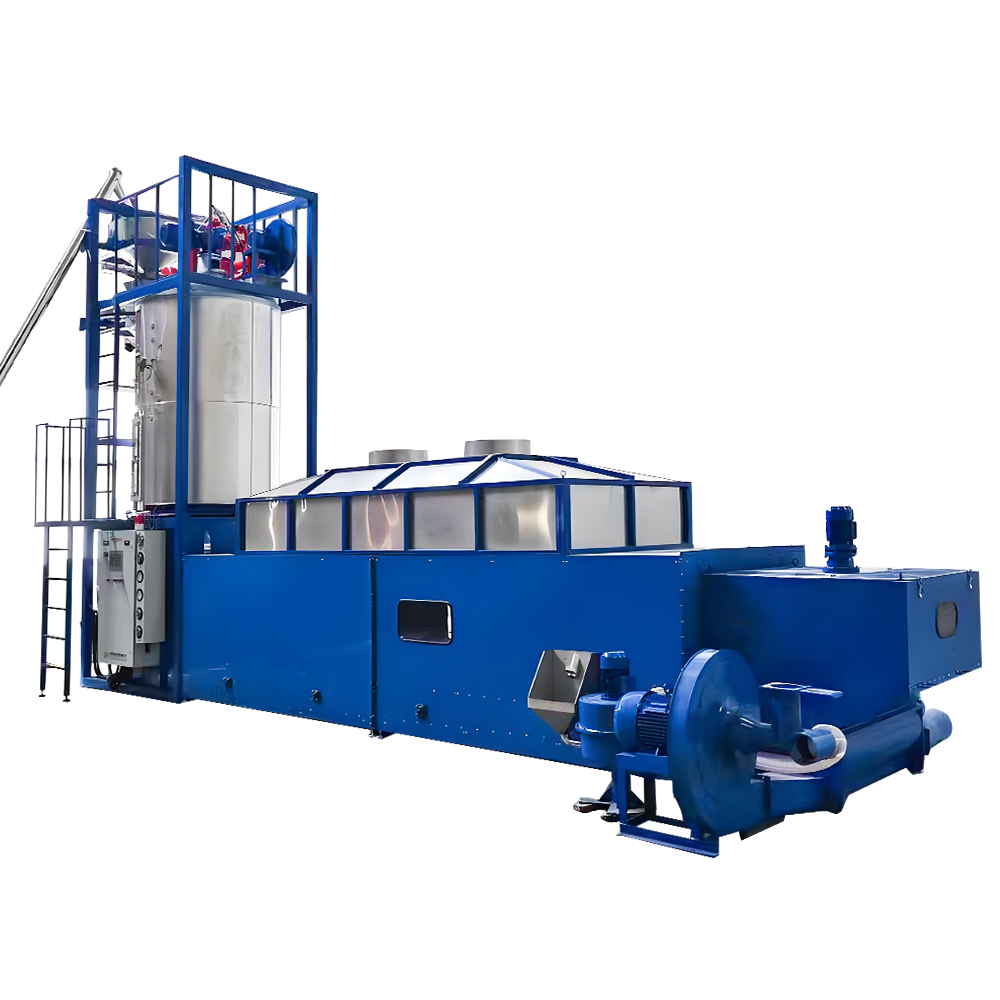

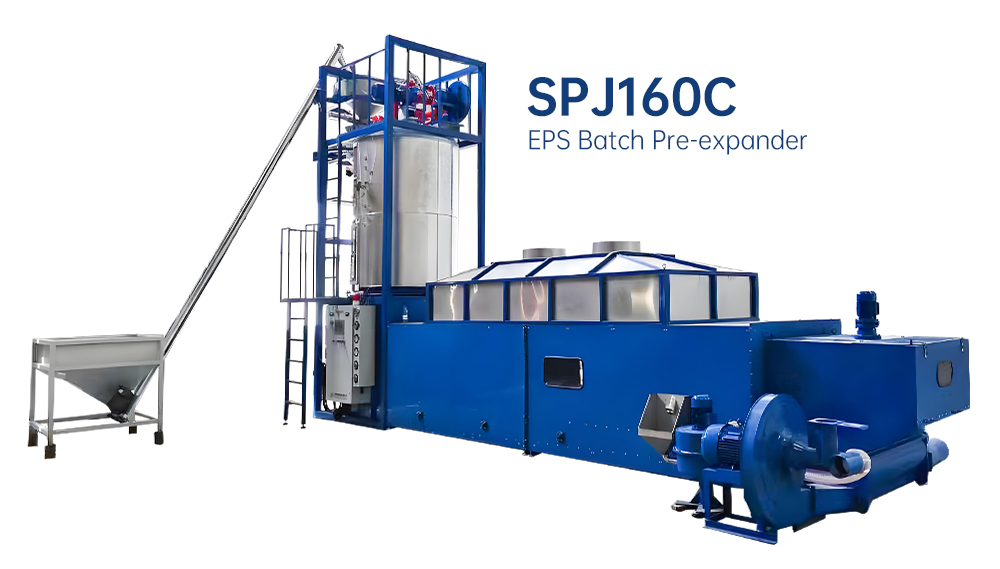

Technical Data of Fangyuan SPJ160C eps batch pre-expander:
| Parameter | Unit | Value |
|---|---|---|
| Vessel (Tank) | mm | φ1600 (inner dia.) × 2250 (height) |
| Effective Volume | m³ | 3.8 |
| Floor Space (L×W×H) | mm | 10500 × 5500 × 5600 |
| Weight | ton | 8.00 |

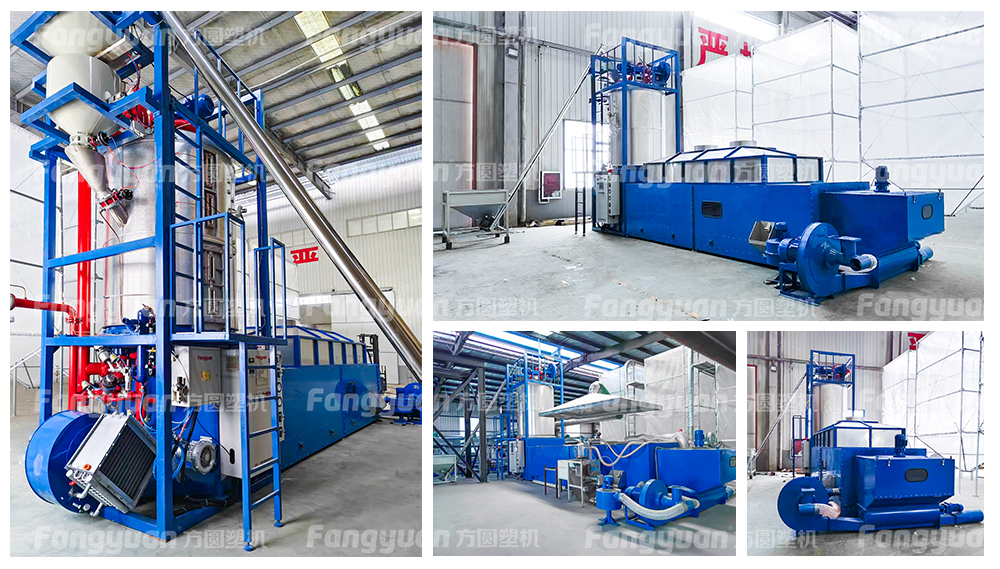

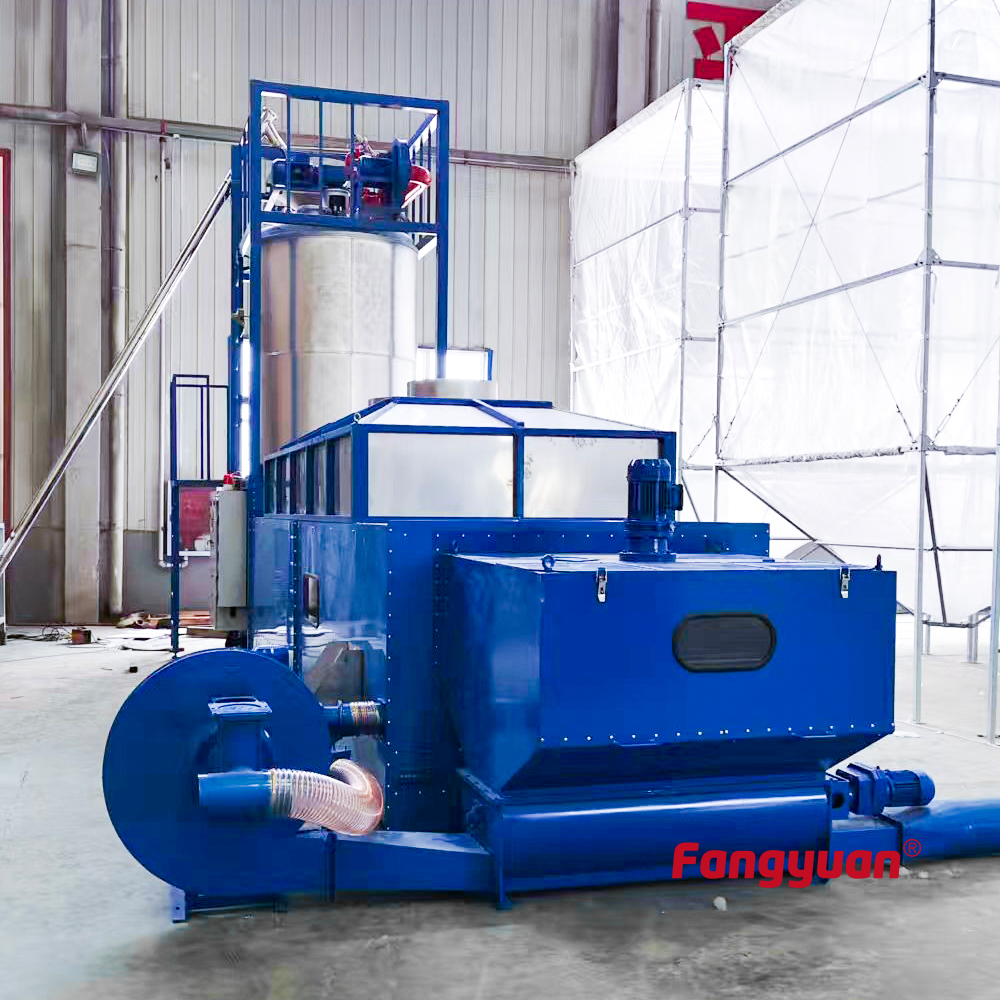

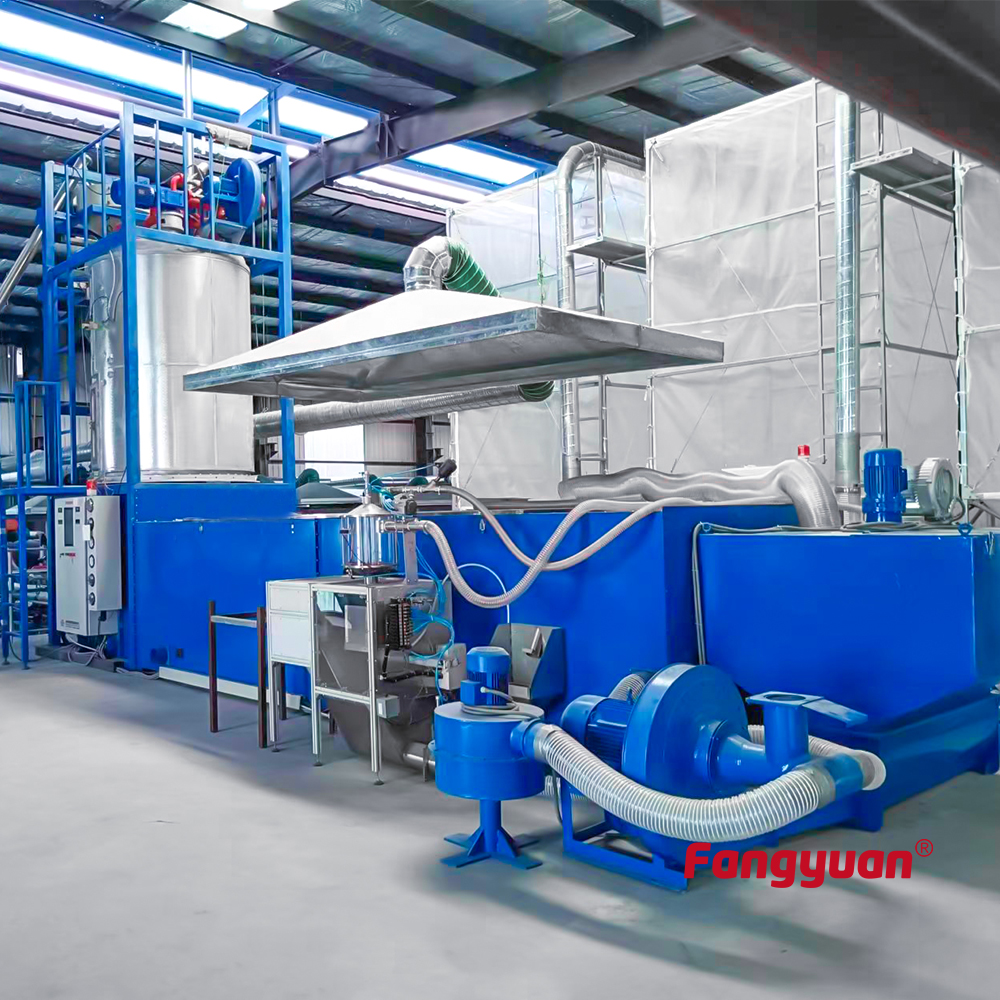

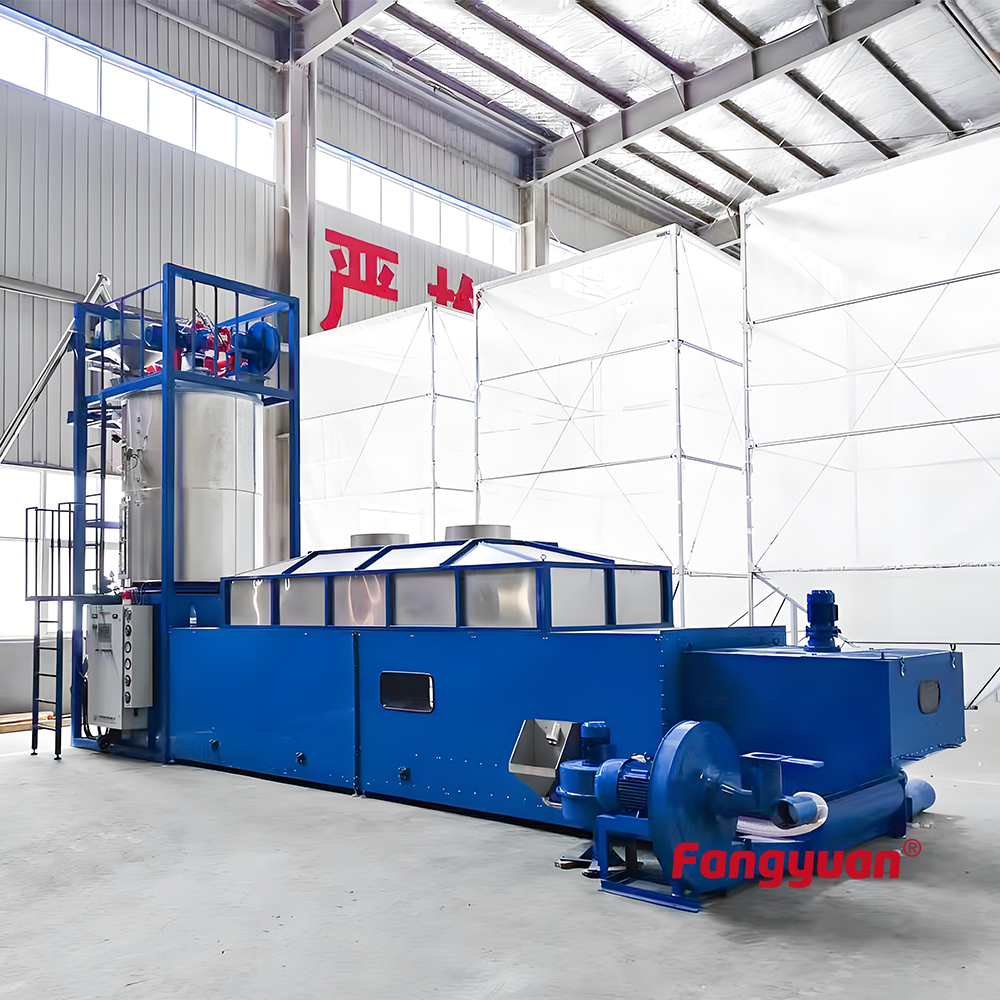

Projects of Fangyuan SPJ160C eps batch pre-expander:
Fangyuan — Global Turnkey Solutions For EPS & EPP Foam Plants
– From Design To Full-Scale Production, Delivered Worldwide
Why Choose Fangyuan?
Founded in 1988，over 600 staff and covered 100,000 sqm Workshop.
Professional EPS, EPP, EPO, ETPU machinery manufacturer.
Integrating R & D, production, sales andservice delivery, provides our clients with
system solutions including design, training, operation and turn-key projects.
Yearly around 2,200 sets machines outputs.
Exported to more than 103 countries.
Fangyuan Honour
The first drafter of National lndustry Standard of EPS machinery in China.
Formulate and Amend 4 National Industry Standards (China)
National SRDI 'Little Giant' Enterprises (China)
Chairman of EPS Committee of CPPIA (China)
Fangyuan Global Service Network System
We do have a qualified group of English, Russian, Indian, Arabic speaking engineers and an able sales staff that support us around the world. We set sales and service office in lndia, Syria, Egypt etc.
Fangyuan Service
FANGYUAN boasts a pool of fine teams, with qualified EPS/EPP products as to moulds, equipment，
resources, technologies, and with rich experience at production and operation.
PRE-SALES SERVICE：
Inquiry And Consulting Support
Lastest Industry Trends
Offer Turn-key EPS Plant
Sample Testing Support
View Our Factory
Suggest Layout Support
AFTER-SALES SERVICE：
One Year Warranty
Machine Test Video Before Delivery
English Manual, Electric Diagram Training How To Install And Running The Machine
Engineers Available To Service Machinery Overseas
24 Hours Online Service
