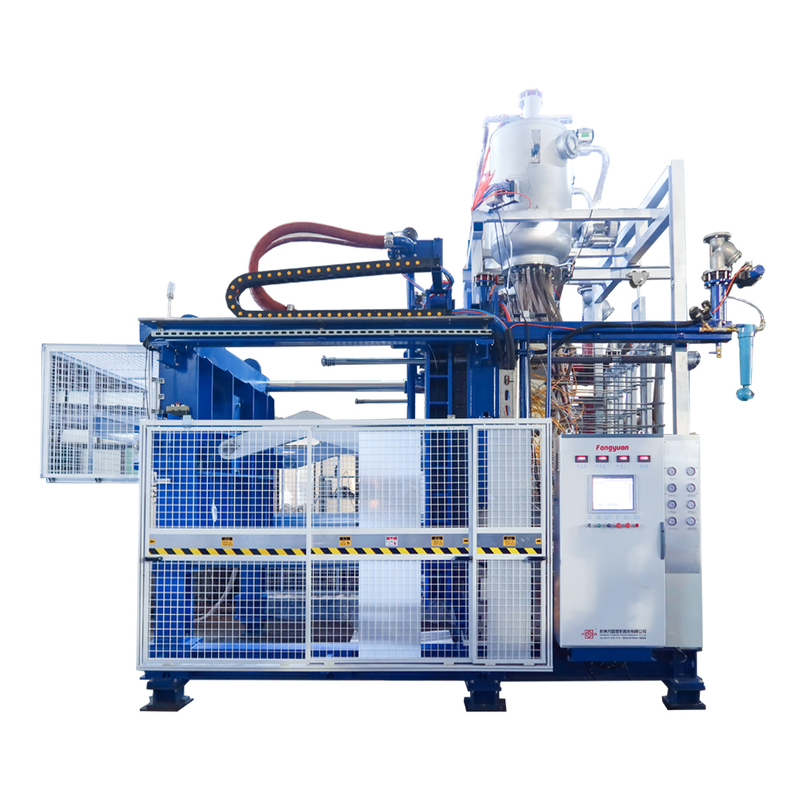

Electrically-Driven Expanded Polystyrene (EPS) Foam Molding Machine

SPZ2222KE — Main Features:

• Front-loading three-die structure producing twelve vegetable boxes (600×450mm) by one die reduces die opening cost, and pre-assembled die switch frame for fixed and moving die realizes hoisting whole die in air chamber conveniently.

• Air chamber with internal and external thermal insulation and uniformly distributed multi-point heating ensures uniform heating and saves steam, and cooling water pipe using die self-contact interface facilitates die installation.

• Moving die steam and drainage connection by hard pipe instead of hose, provides small pipe volume, fast flow rate and rapid heating, effectively reducing steam consumption.

• Steam valve with dual-valve system uses self-developed DN100self-operated shutoff valve, and dedicated high-frequency heating control technology to realize accurate and stable heating and effectively reduce steam consumption.

• Electric drive molding machine with mature servo crank connecting rod mechanism, unique patented flexible dead center technology of Fangyuan, and reliable and self-lubricating pin shaft mechanism, has a long service life of operating for over 2 million times in 5 years free of vulnerability or maintenance.

• Servo drive system guarantees smooth and fast motion of die and accurate seam making, and eliminates oil stain trouble and daily hydraulic oil consumption, saving power and energy.

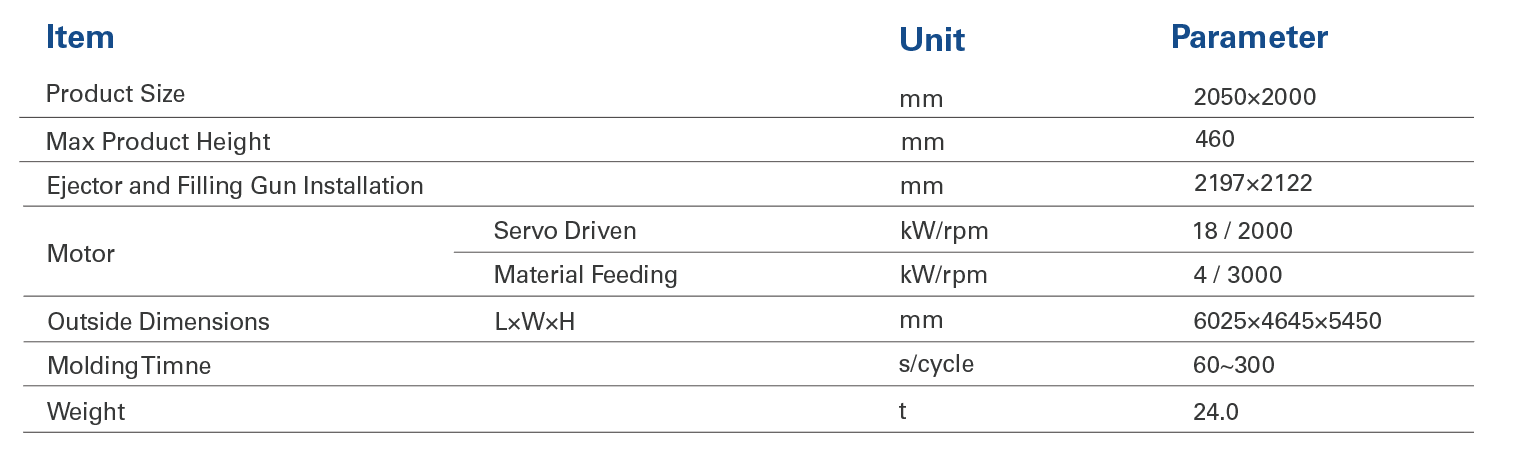

SPZ2222KE — Technical Data:

SPZ2222KE — Vegetable Box:

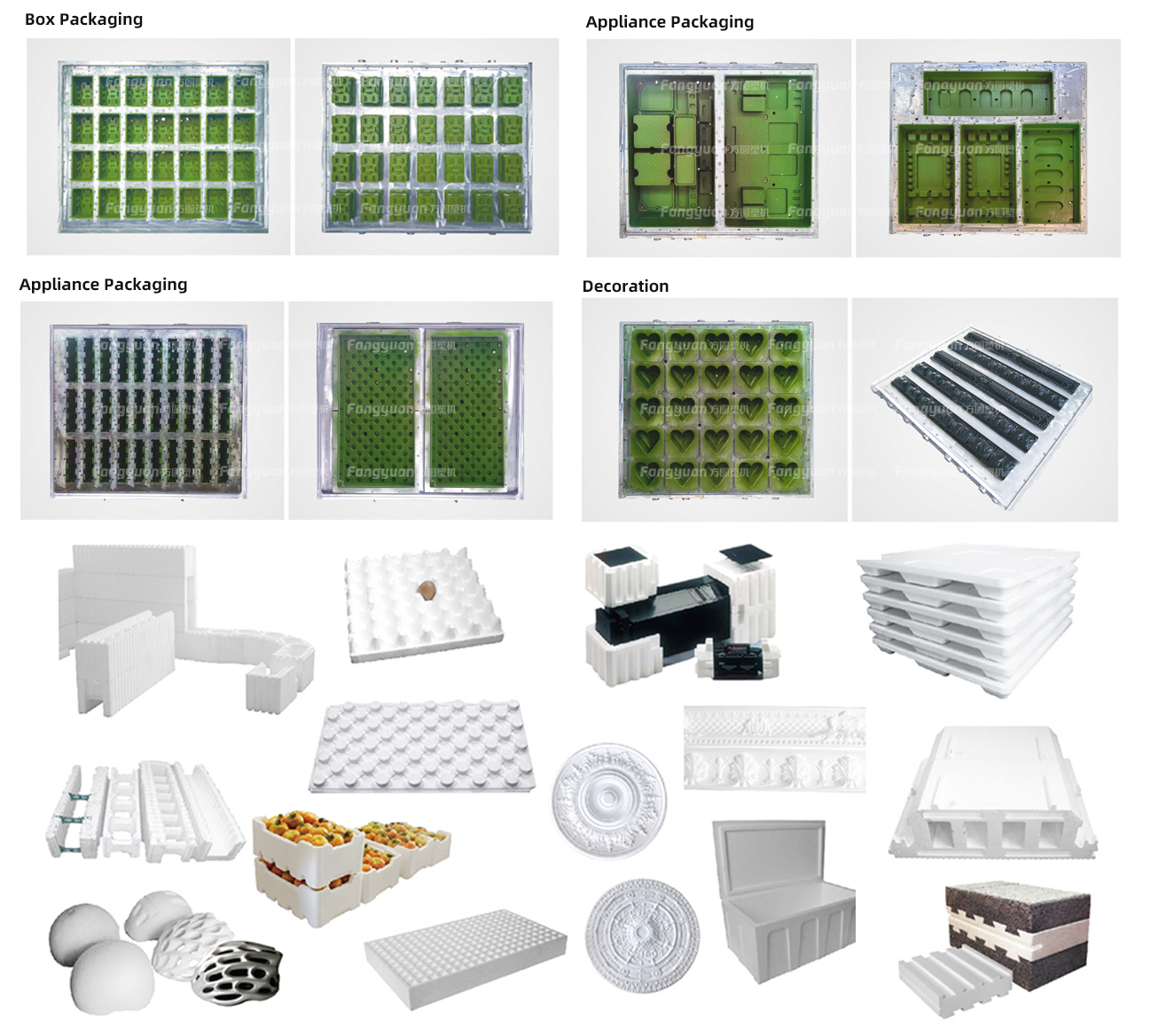

EPS/EPP Machine - Mould:
Box Packaging, Appliance Packaging, Insulation, Interior Compents, Decoration, EPP Etc.

Fangyuan — Global Turnkey Solutions For EPS & EPP Foam Plants

– From Design To Full-Scale Production, Delivered Worldwide

Why Choose Fangyuan?

• Founded in 1988，over 600 staff and covered 100,000 sqm Workshop.

• Professional EPS, EPP, EPO, ETPU machinery manufacturer.

• Integrating R & D, production, sales andservice delivery, provides our clients with

  system solutions including design, training, operation and turn-key projects.

• Yearly around 2,200 sets machines outputs.

• Exported to more than 103 countries.

 Fangyuan Honour

• The first drafter of National lndustry Standard of EPS machinery in China.

• Formulate and Amend 4 National Industry Standards (China)

• National SRDI 'Little Giant' Enterprises (China)

• Chairman of EPS Committee of CPPIA (China)

Fangyuan Global Service Network System

We do have a qualified group of English, Russian, Indian, Arabic speaking engineers and an able salesstaff that support us

around the world. We set sales and service office in lndia, Syria, Egypt etc.

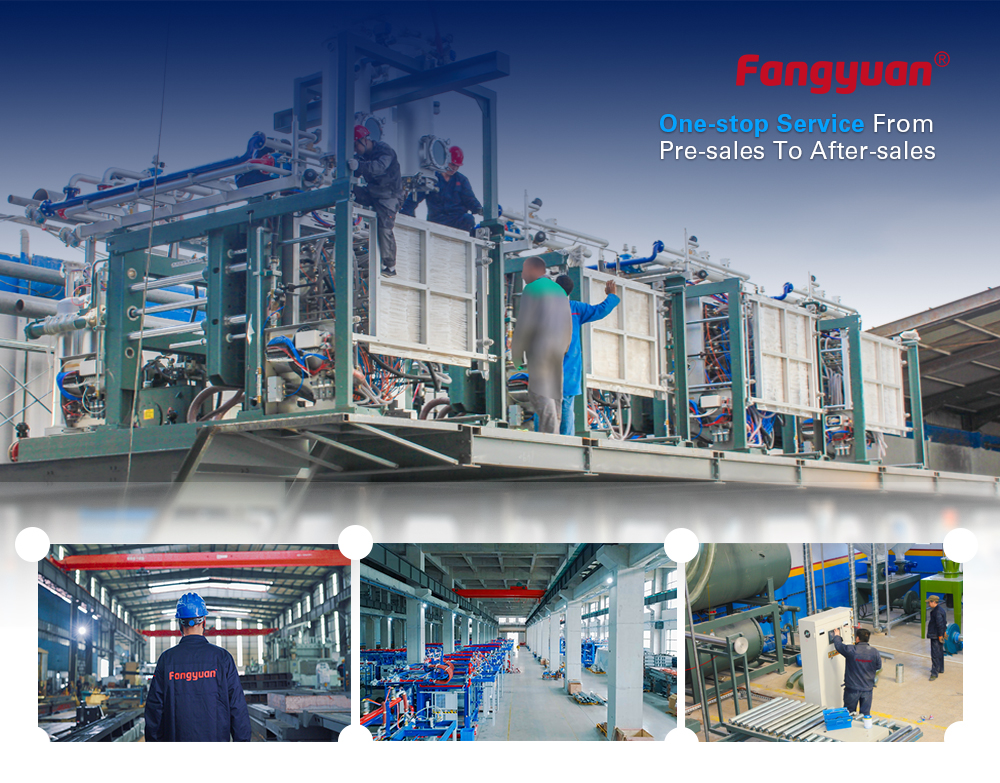

Fangyuan Service

FANGYUAN boasts a pool of fine teams, with qualified EPS/EPP products as to moulds, equipment，

resources, technologies, and with rich experience at production and operation.

PRE-SALES SERVICE

1. Inquiry And Consulting Support

2. Lastest Industry Trends

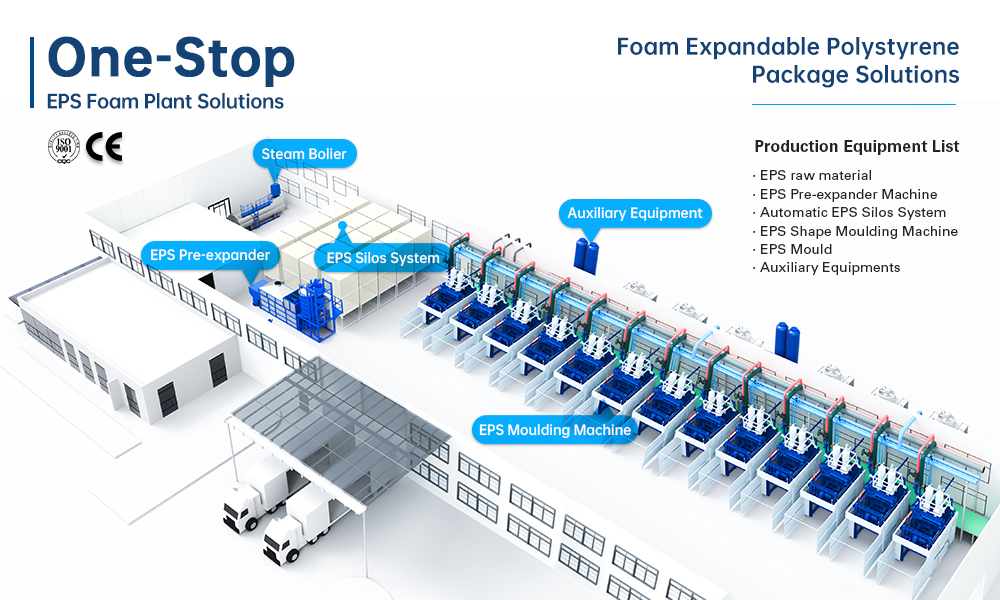

3. Offer Turn-key EPS Plant

4. Sample Testing Support

5. View Our Factory

6. Suggest Layout Support

AFTER-SALES SERVICE

1. One Year Warranty

2. Machine Test Video Before Delivery

3. English Manual, Electric Diagram Training How To Install And Running The Machine

4. Engineers Available To Service Machinery Overseas

5. 24 Hours Online Service
