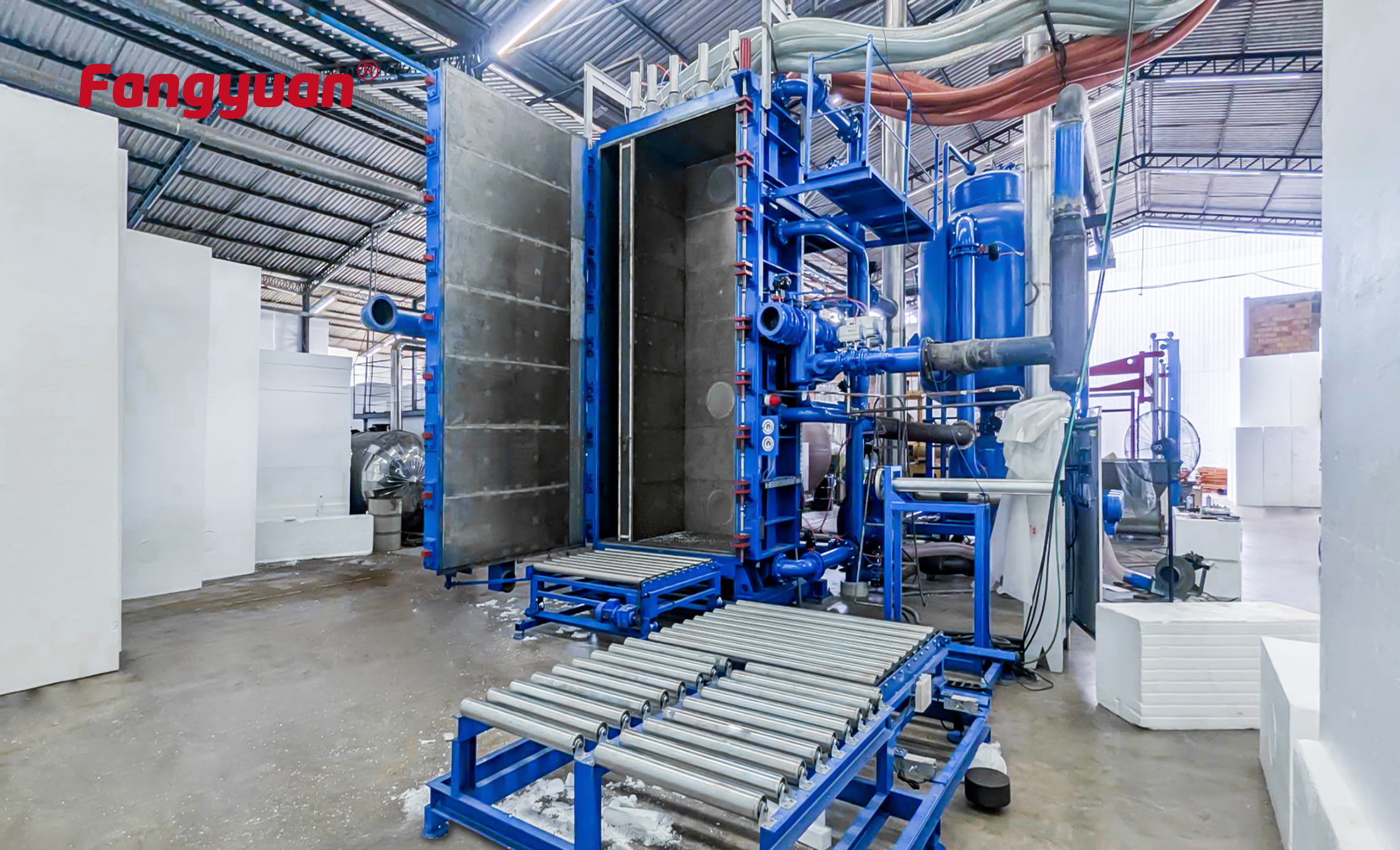

Polystyrene block moulding machine with high efficient

Quantity:
  • SPB200-600LZG
  • FANG YUAN

Polystyrene block moulding machine with high efficient


Product Description


The SPB200-600LZG Polystyrene block moulding machine(European Style) is a new type product , which is safe, stable, energy-saving, full-automatic. The size of Polystyrene block moulding machine also can adjustable.


Main Features:

1.The Polystyrene block moulding machine adopts the new design, concept of European machine design. Low temperature with large diameter pipes ensure quick heating system and vacuum cooling. The pressure sensor controls stable pressure automatically. This delivers high efficiency and energy-saving Polystyrene block moulding machine.


2.By including stainless steel wedge strip, the ventilation area of EPS Polystyrene machine in increased by 12-15%.


3. The EPS Polystyrene machine is equipped with safety devices, which can safely guarantee the normal operation of the machine.



Technical Data

Item


SPB200/LZG/LZ

SPB300/LZG/LZ

SPB400/LZG/LZ

SPB600/LZG/LZ

Mould Cavity Size


2040×1240
×1030(mm)

3060×1240
×1030(mm)

4080×1240
×1030(mm)

5100×1240
×1030(mm)

Block Size


2000×1200
×1000(mm)

3000×1200
×1000(mm)

4000×1200
×1000(mm)

5000×1200
×1000(mm)

Steam

Entry

Consumption

Pressure

DN150
25-35kg/cycle
0.8MPa

DN150
35-50kg/cycle
0.8MPa

DN200
45-60kg/cycle
0.8MPa

DN200
75-90kg/cycle
0.8MPa

Compressed Air

Entry

Consumption

Pressure

DN40
1.5—2m³/cycle
0.6MPa

DN40
1.8--2.2 m³/cycle
0.6MPa

DN65
2--2.5 m³/cycle
0.6MPa

DN65
2.5--3 m³/cycle
0.6MPa

Cooling Water

Entry

Consumption

Pressure

DN65

0.2-0.4³/cycle

0.4-0.6MPa

DN65

0.4-0.6³/cycle

0.4-0.6MPa

DN65

0.6-0.8³/cycle

0.4-0.6MPa

DN65

0.8-1.0³/cycle

0.4-0.6MPa

Drainage

Vacuum Drain

Steam Vent

Blower outlet

¢150mm

¢200mm
¢200mm

¢200mm

¢200mm
¢200mm

¢200mm

¢250mm
¢250mm

¢200mm

¢250mm
¢250mm

Throughput

 15kg/m³

3min/cycle

3min/cycle

4min/cycle

4min/cycle

Connected Load


70kW

70 kW

81 kW

81 kW

Overall Dimension

 L × W× H

5500×4500
×3800(mm)

5500×4500
×4800(mm)

5500×4500
×5800(mm)

5500×4500
×7800(mm)

Machine Weight


10.0t

12.0t

15.0t

18.0t

Room

Height Required


7000mm

7000mm

7000mm

9000mm

Note: We custom make machines according to customer’s requirement.
