Views: 0 Author: Site Editor Publish Time: 2025-09-08 Origin: Site
EPS and EPP machines are specialized equipment designed for processing different types of foam materials used in packaging, automotive, construction, and consumer goods industries. The main differences between EPS Machine and EPP Machine systems lie in their operating parameters, processing capabilities, and end applications. EPS (Expanded Polystyrene) machines typically operate at lower temperatures (80-110°C) and pressures (0.1-0.3 MPa), producing lightweight, rigid foam with excellent insulation properties at costs 15-25% lower than EPP equipment.
In contrast, EPP Machine systems require higher temperatures (130-170°C) and pressures (0.4-0.8 MPa) to process Expanded Polypropylene, resulting in more durable, flexible, and impact-resistant products suitable for automotive parts and reusable packaging. The equipment design, steam distribution systems, mold technologies, and control parameters differ significantly between these two manufacturing systems to accommodate the distinct material properties and processing requirements.
The foundation for understanding the differences between EPS and EPP machinery lies in the distinct properties of the materials they process. These differences directly influence equipment design, processing parameters, and operational requirements.
Expanded Polystyrene (EPS) is a lightweight, rigid foam made from polystyrene beads containing a blowing agent (typically pentane). When exposed to steam, these beads expand to 20-50 times their original volume. EPS features a closed-cell structure with excellent thermal insulation properties (R-value of 3.6-4.2 per inch), making it ideal for construction insulation and protective packaging.
Expanded Polypropylene (EPP) is a bead foam made from polypropylene resin containing a blowing agent. EPP possesses higher durability, flexibility, and impact resistance compared to EPS. It can withstand multiple impacts without significant degradation, offers superior chemical resistance, and maintains its properties across a wider temperature range (-40°C to +120°C).
Key material property differences that affect machinery design include:
Melting point: EPS melts at approximately 100°C, while EPP requires temperatures of 160-170°C
Expansion pressure: EPP requires 30-40% higher pressure for proper fusion
Cooling behavior: EPP has slower cooling characteristics requiring different cooling systems
Density range: EPS typically ranges from 10-35 kg/m³, while EPP ranges from 20-200 kg/m³
Recovery properties: EPP has significant elastic recovery requiring different mold designs
These fundamental material differences necessitate specialized equipment designs optimized for each material's unique processing requirements.
The Pre-expander Machine represents the first critical step in both EPS and EPP processing, but significant technological differences exist between equipment designed for each material.

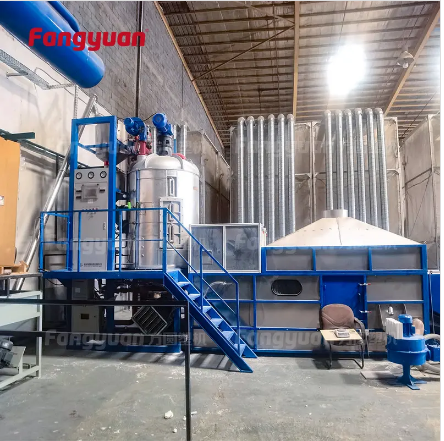

The EPS Pre-expander Machine operates at temperatures of 80-100°C and steam pressures of 0.1-0.3 MPa. These machines feature:
Continuous or batch expansion chambers
Vertical or horizontal configurations
Density control systems with ±5% accuracy
Processing capacities from 50-500 kg/hour
Energy consumption of approximately 0.15-0.25 kWh per kg processed
In contrast, the EPP Pre-expander Machine requires more robust construction and operates at higher parameters:
Higher temperature steam (130-160°C)
Increased pressure (0.4-0.8 MPa)
Specialized agitation systems to prevent material clumping
Enhanced pressure vessel certification (typically PED certified)
Energy consumption of 0.25-0.40 kWh per kg processed
Pre-expansion efficiency directly impacts final product quality and material utilization. Modern EPS pre-expanders achieve material utilization rates of 95-98%, while EPP pre-expanders typically reach 90-95% due to the more challenging expansion characteristics of polypropylene.
Recent technological innovations in pre-expansion include:
Digital density control systems with real-time monitoring
Variable frequency drives for energy optimization
Steam recovery systems reducing energy consumption by 15-25%
Automated cleaning systems minimizing downtime between material changes
According to industry data, companies that upgrade from older pre-expansion systems to modern equipment report average energy savings of 20-30% and improved density consistency of ±3% compared to ±8-10% with older equipment.
The Shape Moulding Machine technology differs significantly between EPS and EPP applications due to the different fusion characteristics of the materials.
EPS shape molding equipment typically features:
Operating pressures of 0.12-0.35 MPa
Vacuum capabilities for enhanced bead fusion
Cycle times of 60-240 seconds depending on part thickness
Ejection systems designed for rigid parts
Standard mold cooling systems

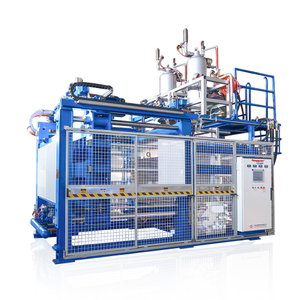

The EPP Shape Moulding Machine requires more specialized design elements:
Higher operating pressures (0.4-1.0 MPa)
Enhanced steam distribution systems for uniform heating
Extended heating cycles for proper bead fusion
More robust clamp systems to counteract higher internal pressures
Specialized ejection systems for flexible parts
Intensive cooling systems for optimized cycle times
Modern EPP shape molding machines incorporate multi-zone temperature control systems that provide precise temperature management across different areas of complex molds. This technology has reduced cycle times by approximately 15-25% compared to older single-zone systems.
The Special Shape Moulding Machine category encompasses equipment designed for complex geometries and specialized applications. For EPS processing, these machines focus on intricate designs with thin walls and detailed surface features. They typically incorporate enhanced vacuum systems and precision steam distribution.
For EPP processing, special shape molding equipment must address unique challenges including:
Variable density control within a single part
Co-molding with rigid inserts or reinforcements
Management of significant material shrinkage (1.5-3%)
Specialized venting systems for complex geometries
The automotive industry has driven significant advancement in EPP special shape molding, with equipment now capable of producing complex multi-density components that combine energy absorption zones with structural elements in a single part.
The Block Moulding Machine technology differs substantially between EPS and EPP applications. EPS block molding is a well-established technology, producing large rectangular blocks (typically 4m × 1.2m × 0.6m) that serve as raw material for cutting operations.
EPS block molding equipment features:
Large rectangular chambers with movable walls
Steam distribution systems designed for uniform density
Vacuum capabilities for enhanced fusion
Cycle times of 5-12 minutes depending on block size
Cooling systems for efficient production cycles
EPP block molding is less common but growing in specialized applications. EPP block equipment requires:
Higher pressure capabilities throughout the system
Enhanced steam penetration for proper core fusion
Extended cycle times (typically 15-30% longer than EPS)
More intensive cooling systems
Specialized material handling for the heavier blocks
EPP block molding remains approximately 20-30% more expensive per cubic meter of material processed compared to EPS block molding, primarily due to extended cycle times and higher energy requirements.
The operational differences between EPS and EPP equipment translate to significant variations in performance parameters that affect production efficiency, operating costs, and output capabilities. The following table provides a comprehensive comparison:
| Parameter | EPS Machine Systems | EPP Machine Systems |
|---|---|---|
| Operating Temperature | 80-110°C | 130-170°C |
| Steam Pressure | 0.1-0.3 MPa | 0.4-0.8 MPa |
| Energy Consumption | 0.8-1.2 kWh/kg finished product | 1.2-1.8 kWh/kg finished product |
| Cycle Times | Base reference (100%) | 15-40% longer |
| Material Utilization | 95-98% | 90-95% |
| Production Flexibility | High - quick material/mold changes | Medium - longer changeover times |
| Maintenance Requirements | Every 500-800 operating hours | Every 300-500 operating hours |
| Equipment Lifespan | 15-20 years | 12-18 years |
| Automation Compatibility | High - well-established interfaces | Medium-High - more complex parameters |
| Typical Floor Space Requirements | Base reference (100%) | 10-20% larger footprint |
| Initial Investment Cost | Base reference (100%) | 25-40% higher |
| Operating Costs | Base reference (100%) | 20-35% higher |
The higher operating costs of EPP equipment are partially offset by the higher value of EPP products, which typically command price premiums of 30-60% over comparable EPS products due to their enhanced performance characteristics.
Recent technological developments have focused on reducing the energy consumption gap between EPS and EPP equipment. Advanced heat recovery systems and optimized steam management have reduced EPP processing energy requirements by approximately 15% over the past five years, according to industry association data.
The decision between investing in EPS or EPP machinery depends largely on target applications, market requirements, and business strategy. Understanding the optimal application scenarios helps manufacturers make informed equipment investment decisions.
For manufacturers focusing on construction markets, EPS equipment offers significant advantages:
Lower capital investment for insulation panel production
Established building code acceptance worldwide
Higher production volumes at lower operating costs
Simpler processing requirements for standard insulation products
The construction industry remains the largest application for EPS, consuming approximately 35% of global EPS production. EPS machinery optimized for construction applications offers the most cost-effective solution for this market segment.
Manufacturers targeting automotive applications generally benefit from EPP equipment investments:
Superior impact resistance for safety components
Multi-impact recovery capabilities for reusable packaging
Higher temperature resistance for engine compartment parts
Chemical resistance for automotive fluid exposure
Weight reduction potential for improved fuel efficiency
The automotive industry has embraced EPP technology, with applications growing at 7-9% annually. Modern vehicles typically contain 12-18 EPP components, from bumper cores to seat structures, representing a significant market opportunity for EPP equipment owners.
The choice between EPS and EPP equipment for packaging applications depends on specific requirements:
EPS equipment is preferred for:
Single-use protective packaging with lower cost requirements
High-volume standardized packaging components
Thermal insulation for temperature-sensitive shipments
Lightweight applications where minimum material use is critical
EPP equipment is advantageous for:
Reusable packaging systems with multiple use cycles
Premium product presentation with higher aesthetic requirements
Applications requiring durability during repeated handling
Custom-colored or branded packaging components
The reusable packaging market has grown at 12-15% annually, creating expanded opportunities for EPP equipment investment, particularly in high-value electronics and medical device sectors.
Selecting between EPS and EPP machinery represents a significant long-term investment decision. The following steps can guide manufacturers through this complex process:
Analyze Target Market Requirements
Evaluate customer specifications for material performance
Research industry trends in your target markets
Assess competitive landscape and material preferences
Consider regulatory requirements and sustainability factors
Determine Production Volume Requirements
Calculate projected annual production volumes
Assess seasonality and production flexibility needs
Consider future growth projections
Evaluate multiple shift operation possibilities
Perform Comprehensive Cost Analysis
Compare initial equipment investment costs
Calculate operating costs including energy, maintenance, and labor
Analyze material costs and availability
Develop total cost of ownership (TCO) projections for 5-10 years
Evaluate Facility Requirements
Assess available floor space for equipment installation
Verify utility capabilities (steam, electricity, cooling water)
Consider material storage and handling requirements
Evaluate environmental control needs
Consider Hybrid Production Possibilities
Explore options for hybrid facilities running both materials
Evaluate equipment with crossover capabilities where applicable
Assess operator training requirements for multiple materials
Consider phased implementation strategies
According to industry consultants, manufacturers who conduct thorough equipment selection analyses typically achieve 15-20% better return on investment compared to those making decisions based primarily on initial purchase price.
The foam processing equipment industry continues to evolve, with several key trends shaping the future development of both EPS and EPP machinery:
Equipment manufacturers are increasingly focusing on sustainability improvements:
Reduced energy consumption through improved insulation and steam management
Closed-loop cooling water systems minimizing water usage
Integration with Recycling System technology for inline reprocessing
Compatibility with bio-based and biodegradable bead foams
Reduced compressed air consumption through optimized pneumatic systems
Leading EPS Machine Manufacturer companies report that sustainability features have become a primary selection criterion for approximately 40% of new equipment purchases, up from less than 15% five years ago.
Modern foam processing equipment increasingly incorporates digital manufacturing capabilities:
IoT sensors for real-time performance monitoring
Predictive maintenance algorithms reducing unplanned downtime
Remote diagnostics capabilities for faster technical support
Production data analytics for process optimization
Integration with manufacturing execution systems (MES)
These technologies have demonstrated productivity improvements of 12-18% in early adopter facilities through reduced setup times, faster troubleshooting, and optimized production parameters.
Equipment with multi-material capabilities represents an emerging trend:
Adaptable pre-expansion systems handling both EPS and EPP
Quick-change steam distribution systems
Convertible molding equipment with adjustable pressure ranges
Control systems with material-specific parameter libraries
Flexible Cutting Machine technology for various foam types
While hybrid equipment typically commands a 15-20% price premium over single-material systems, manufacturers report average payback periods of 2-3 years through enhanced production flexibility and expanded market opportunities.
The integration of automation and robotics continues to advance:
Automated material handling between process stages
Robotic demolding and part handling systems
Vision systems for quality inspection
Automatic mold changing systems reducing changeover times
Palletizing and packaging automation
These technologies have demonstrated labor cost reductions of 30-40% in high-wage markets while improving product consistency and reducing workplace injuries.
Q1: What is the primary difference between EPS and EPP machines?
A1: EPS machines operate at lower temperatures (80-110°C) and pressures (0.1-0.3 MPa) than EPP machines, which require higher temperatures (130-170°C) and pressures (0.4-0.8 MPa) due to the different material fusion characteristics.
Q2: Are EPS machines more energy-efficient than EPP machines?
A2: Yes, EPS machines typically consume 30-40% less energy than comparable EPP equipment due to lower operating temperatures and shorter cycle times required for processing expanded polystyrene.
Q3: Can the same equipment be used for both EPS and EPP production?
A3: Standard equipment cannot process both materials efficiently. However, specialized hybrid equipment is available at 15-20% higher cost that can be configured for either material with appropriate changeover procedures.
Q4: How much more expensive is EPP machinery compared to EPS equipment?
A4: EPP production equipment typically costs 25-40% more than comparable EPS machinery due to higher pressure requirements, more robust construction, and specialized steam distribution systems.
Q5: What industries primarily use EPP rather than EPS products?
A5: The automotive industry is the largest EPP consumer, using it for bumper cores, seat structures, and headrests. Other major users include reusable packaging, sports equipment, and HVAC components requiring durability and impact resistance.
Q6: What maintenance differences exist between EPS and EPP equipment?
A6: EPP equipment typically requires maintenance 40-50% more frequently than EPS machinery due to higher operating pressures, temperatures, and mechanical stress. Critical components like gaskets and seals need more frequent replacement.
Q7: What is the typical return on investment period for EPS versus EPP machinery?
A7: EPS equipment typically achieves ROI in 3-5 years depending on production volume, while EPP machinery generally requires 4-7 years due to higher initial investment, despite the higher value of EPP products.
The choice between EPS and EPP machinery represents a significant strategic decision that impacts manufacturing capabilities, operating costs, and market opportunities for years to come. While EPS equipment offers lower initial investment and operating costs, EPP machinery enables production of higher-value products with enhanced performance characteristics suited to demanding applications.
The optimal decision depends on a comprehensive analysis of target markets, production requirements, facility capabilities, and long-term business strategy. Many successful manufacturers have implemented phased approaches, beginning with EPS equipment for established markets while gradually introducing EPP capabilities as they expand into higher-value applications.
Industry experts anticipate continued technological convergence, with future equipment generations offering enhanced flexibility and sustainability features. Manufacturers considering equipment investments should evaluate not only current requirements but also future market trends and material developments that may influence equipment utilization over its operational lifespan.
Ultimately, the most successful implementations combine appropriate technology selection with comprehensive operator training, preventive maintenance programs, and continuous process optimization. By understanding the fundamental differences between EPS and EPP machinery and aligning equipment selection with business strategy, manufacturers can position themselves for long-term success in this evolving industry.
As sustainability considerations continue to gain importance, manufacturers should also evaluate equipment based on energy efficiency, recycling capabilities, and compatibility with emerging bio-based materials. These factors will increasingly influence both regulatory compliance and customer preferences in markets worldwide.
