Views: 1 Author: Site Editor Publish Time: 2026-06-23 Origin: Site
You need different machines to make a Complete EPS 3D Panel cutting line. Each machine does a special job. They all work together to make production fast and easy.
CNC Foam Cutter
Foam Coating Machine
Circle Arc EPS Cutter
Foam Cutting Tools
3D wire mesh panel machine (moves wire mesh and EPS board by itself)
This article will show you how each machine works in the process. It will also tell you about extra upgrades that can make your line better.
A full EPS 3D panel cutting line needs many machines. Each machine has its own job. This helps the line work well.
It is important to check and fix the machines often. This stops them from breaking and keeps work going.
Adding more tools, like automatic turnover devices and dust collection systems, can make work faster. These tools also help make better panels.
Workers must learn how to use and care for the machines. This helps them work better and stay safe.
Picking good companies, like Fangyuan, gives you better machines and help. This can make your EPS panel line work well.
To make a complete eps 3d panel cutting line, you need many machines. Each machine does something different. When you use all the machines together, you get panels that are strong and accurate. Here are the main machines you need:
EPS Block Moulding Machine
EPS Shape Moulding Machine
Wire Mesh Welder
Steel Wire Coiling Machine
Cutting Mesh Machine
Steel Wire Insert Machine
EPS Wire Mesh Panel Machine
3D Panel Production Line
EPS Recycling System
Vertical 3D Panel Assembling Machine
EPS Crusher and De-duster
EPS Mixer
Product Auto-conveying System
Tip: Always check each part in your complete eps 3d panel equipment. If one part breaks, the whole line can stop working. Good design and regular care help your line work well.
Equipment Name | Main Function |
|---|---|
EPS Pre-expander Machine | Makes raw EPS beads bigger for panel core |
EPS Block Moulding Machine | Shapes big EPS blocks for cutting |
EPS Cutting Machine | Cuts EPS blocks into panel shapes |
Wire Mesh Welder | Joins steel mesh for panel strength |
Steel Wire Coiling Machine | Rolls steel wire for mesh and inserts |
Cutting Mesh Machine | Cuts mesh to fit panel size |
Steel Wire Insert Machine | Puts steel wire into EPS panels |
EPS Wire Mesh Panel Machine | Puts EPS core and wire mesh together into panels |
3D Panel Production Line | Makes panel assembly automatic |
EPS Recycling System | Reuses EPS waste |
Vertical 3D Panel Assembling Machine | Builds panels upright for speed |
Product Auto-conveying System | Moves panels from one machine to another |
Every machine in your complete eps 3d panel line has its own job. Using good machines and keeping them clean helps your line work better. Many factories use more automatic machines and smart controls now. This saves time and helps stop mistakes.
You use the wire mesh welder to join steel wires together. This machine makes the mesh that gives your panels strength. You set the wire gauge and mesh spacing to match your project. The welder works fast and keeps the welds even. You can check the welds for quality. Good welds mean your panels stay strong for a long time.
Here is a table that shows important technical details for the wire mesh welder:
Specification Type | Details |
|---|---|
Core Density | 12-18 kg/m³ (standard), 20+ kg/m³ (load-bearing) |
Wire Gauge | 3-5mm galvanized steel, 50-100mm mesh spacing |
Fire Rating | Minimum Class B, preferably Class A |
Thermal Resistance | R-values between 3.5-6.5 m²·K/W |
Load Capacity | Vertical: ≥150 kN/m; Horizontal: ≥80 kN/m |
Acoustic Insulation | 25-40 dB reduction |
Wire Tensile Strength | ≥550 MPa (mill test certificates required) |
Weld Integrity | ≥95% weld consistency (third-party inspection required) |
Note: You should always check the weld integrity. This keeps your eps system safe and reliable.
The steel wire coiling machine prepares the wire for your mesh. You feed steel wire into the machine. It rolls the wire into coils. You can use these coils in the next steps of your eps system. The machine works with different wire diameters. You can adjust it for your needs. You get steady output and less downtime.
Here is a table with the main performance metrics:
Specification | Value |
|---|---|
Capacity | 400m2~500m2/8 hours |
Wire Diameter | 2mm-3mm |
EPS Board Thickness | 50mm~120mm |
You should keep the machine clean and check for worn parts. This helps your installation run smoothly.
You use the cutting mesh machine to cut the wire mesh to the right size. This machine makes sure every piece fits your panel design. You set the length and width. The machine cuts fast and keeps the edges straight. You get less waste and better panels. You should check the blades often. Sharp blades give you clean cuts.
The steel wire insert machine puts steel wires into the eps panels. You use this machine to add extra strength. The machine pushes the wires into the foam core. You can set the depth and spacing. This step helps your panels hold up under heavy loads. You should check the alignment. Good alignment means your panels stay strong.

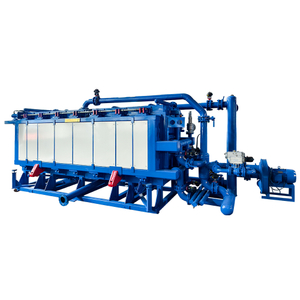

You use the eps block molding machine to shape raw eps beads into large blocks. You pour the beads into the mold. The machine heats and expands the beads. You get solid blocks that you can cut into panels. You can choose the block size for your project. This machine is a key part of your eps system. You should clean the mold after each use. Clean molds make better blocks.
The eps cutting machine slices the large blocks into panel shapes. You set the size and thickness. The machine uses high-precision cutting to make every panel the same. You get less waste and save money. The machine can work by itself. You can recycle the leftover foam.
Here is a table that shows how the machine works:
Feature | Description |
|---|---|
High-precision cutting | Achieves micron-level precision, ensuring exact dimensions and reducing errors and waste. |
Automated operations | Enhances production efficiency and minimizes human error, leading to more accurate cuts. |
Recycling of waste | Allows for the reuse of cutting waste, contributing to material conservation and reducing costs. |
Tip: You should always check the settings before you start. This keeps your installation running well.
The eps wire mesh panel machine brings everything together. You use this machine to combine the foam core and wire mesh. The machine lines up the mesh and foam. It uses a control system with a touch screen. You can make many types of panels for different buildings. The machine works fast and keeps the panels strong.
Here is a table that shows what this machine can do:
Feature | Description |
|---|---|
Machine Components | Consists of Steel Net Welding Machine and Wire Inserting & Welding Machine |
Control System | Utilizes PLC and touch screen for operation |
Positioning | Ensures strict positioning of wire meshes, EPS panel, and truss wire crossing panel |
Application | Designed for creating strong insulated concrete buildings or walls using 3D panels |
Flexibility of Design | 3D panels are adaptable for various concrete structures due to their design flexibility |
You should check the alignment and settings before each run. This helps your eps system make panels that meet your needs.

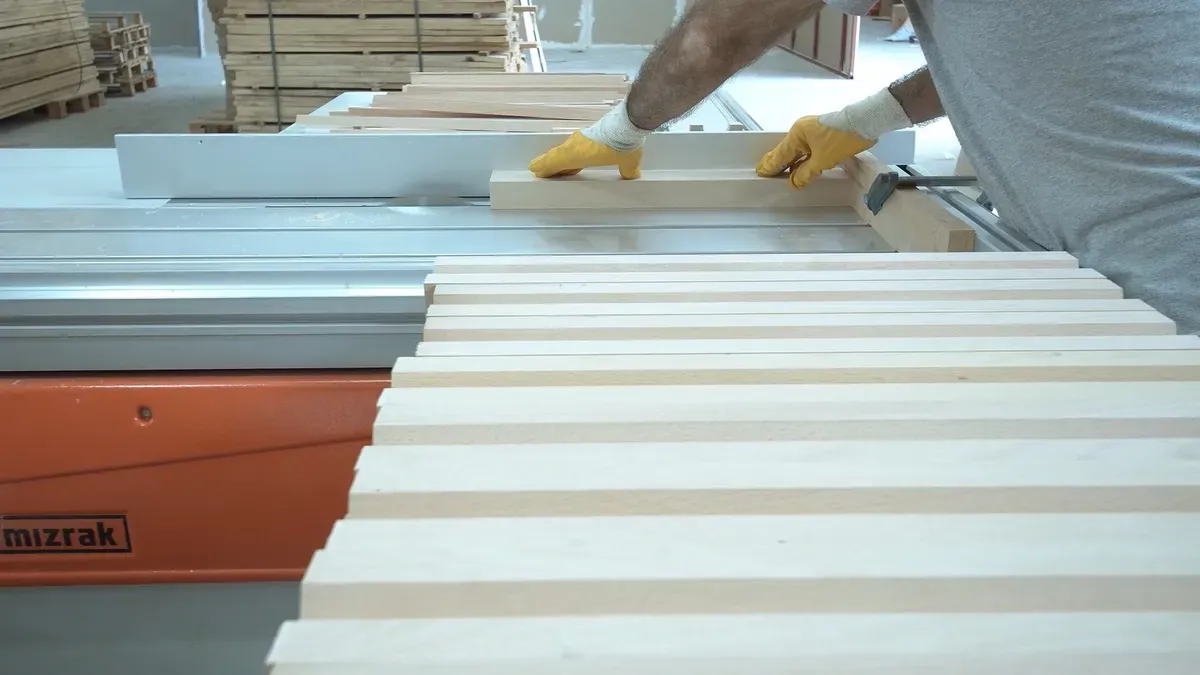

You can make 3d wall panels by following simple steps. Each step helps you build panels for modern buildings. Here is how you do it:
EPS Core Formation: Expand raw EPS beads to make a foam block. This gives your panels a strong center.
Cutting the EPS Core: Cut the foam blocks to the right size. Good cutting makes your panels better.
Surface Lamination: Put the EPS core between surface layers. This step makes your panels strong for building.
Edge Sealing and Finishing: Seal the edges to keep water out. Sealed edges help your panels last longer.
Quality Inspection: Check each panel for thickness and strength. Good checks make sure your panels are safe to use.
Packaging and Storage: Stack and pack the finished panels. Good packaging keeps your 3d wall panels safe when moving them.
Tip: Always check your panels before you pack them. This helps stop problems and keeps your customers happy.
You need to connect each machine to keep work smooth. Good machine setup helps you make 3d wall panels faster and with fewer mistakes. The table below shows how each step helps with quality and speed:
Step | Impact on Quality and Speed |
|---|---|
Raw Material Handling | Store EPS beads right so they stay dry. Dry beads expand better and make stronger panels for building. |
Fine-Tuning the Expansion | Change steam and heat as needed. This makes your 3d wall panels stronger and warmer. |
Improving the Molding Process | Clean molds stop mistakes. Strong panels help your building projects work well. |
Streamlining Cutting Operations | Sharp tools cut clean. Machines that cut by themselves save time and make panels fit right. |
Implementing Quality Control | Check panels often to keep them good. Good panels make building safer. |
Investing in Automation | Machines that work by themselves make more panels fast. You get more 3d wall panels with less work. |
Training Staff | Teach your workers how to use machines. Good training makes better panels and faster work. |
You should use best practices to get the most from your machines:
Best Practice | Description |
|---|---|
Raw Material Quality Management | Sort EPS waste well. Clean waste makes better 3d wall panels and keeps your machines safe. |
Operator Training | Teach your workers to use and care for machines. Skilled workers help your line run well. |
Preventive Maintenance | Make plans to check machines every day, week, and month. Regular care keeps your machines working. |
Test panels often and write down results. Good records help you meet building rules and customer needs. |
Note: Keep your machines clean and check them often. This helps you make great 3d wall panels for every building job.
If you want to make more 3d panels, you can add extra equipment. These upgrades help you work faster and keep your factory clean. They also help every panel meet high standards. Here are some important choices you can use.
An automatic turnover device flips panels during production. This tool moves heavy polystyrene panels safely and quickly. You do not need to lift panels by hand. The device lowers the chance of damage and injury. It keeps your work moving smoothly. Many factories use other helpful tools, like:
Compressed Air Tank
EPS and EPP Heating Room
Central Vacuum System
Exhaust Recovery
Product Auto-conveying System
Steam Accumulator
Air Compressor
Water Pressure Stabilizer
Steam Boiler
Cooling Tower and Pumps
These upgrades help you install panels and handle big batches of polystyrene panels.
A dust collection system keeps your workspace clean when you cut panels. Dust can make your 3d panels worse and slow machines down. Using a dust collection system gives you these benefits:
Benefit | Description |
|---|---|
Improved Product Quality | Removes dirt that can hurt recycled EPS. |
Increased Efficiency | Helps machines work smoothly. |
Environmental Benefits | Makes your factory cleaner. |
Cost Savings | Cuts waste and helps recycling work better. |
You keep your machines working well and protect your workers’ health.
A quality inspection station checks each panel before it leaves the factory. You can find problems early and fix them fast. This step helps you send out strong, safe panels every time. The station tracks important numbers and gives feedback right away. Here is how it helps your business:
Metric | Improvement Rate |
|---|---|
Defect Escape Rates | 85-95% lower |
Manufacturing Yield Improvements | 8-15% higher |
Labor Cost Reduction | 40-60% less |
You also get:
Continuous tracking of production numbers and quality.
Quick finding of mistakes or problems.
Feedback to keep your panels at top quality.
Adding these extra tools makes your polystyrene panels better and your production line more reliable.
If you want a good partner for making 3d panels, Fangyuan is a smart choice. Fangyuan has been making EPS and EPP machines for more than 23 years. They have lots of experience and offer many machines for your 3d panel cutting line. You can pick machines that do every step, from raw materials to finished panels.
Here are some main machines and solutions you can use for your 3d projects:

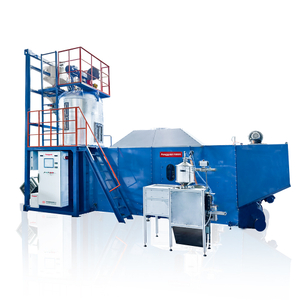

EPS Machine: Pre-expander Machine
Block Moulding Machine
Cutting Machine
EPP Machine: EPP Pre-expander Machine
EPP Shape Moulding Machine
ETPU Machine: ETPU Machine
Special Shape Moulding Machine
Mould: EPS mould, EPP Mould, ETPU Mould
Recycling System
Auxiliary Machine: Tower Type Central Vacuum System
Fangyuan’s 3d panel equipment uses new technology. The machines help you work faster and make fewer mistakes. You can see the main features in the table below:
Feature | Description |
|---|---|
Increased Automation | Advanced robotics and computerized systems reduce human error and increase productivity. |
Energy Efficiency | Integrated energy recovery systems lower production costs and carbon footprint. |
Flexibility in Design | Quick-change mold systems allow for diverse product designs, enhancing customer satisfaction. |
When you pick Fangyuan for your 3d panel line, you get many benefits:
Advantage | Details |
|---|---|
Experience | 23 years in the industry |
Production Capacity | 100,000+ m² facility with over 550 staff |
Reliability | 100% on-time delivery rate, ISO and CE certifications |
Customization | Ability to handle customized demands and graphic processing for diverse product lines |
Fangyuan is a company you can trust for 3d panel solutions. They have ISO9001:2015 and EU CE certifications and more than 50 patents. You can check out their turn-key plant solutions, service support, full product range, and EPS machine options. Fangyuan helps you build a complete 3d panel cutting line that fits your needs and helps your business grow.
You need many machines to make a full EPS 3D panel cutting line. Each machine helps you shape, cut, or put together panels fast and right. Wire mesh welders, EPS block molding machines, and cutting machines all work as a team to make strong panels. You can add extra machines like automatic composite panel machines or wire mesh welders that feed by themselves. You can also use tools like water pumps and air compressors. These upgrades help you work faster and keep your line working well.
You use an EPS 3D panel cutting line to make building panels. The line includes machines that shape, cut, and assemble panels. These panels help you build strong and light walls.
Wire mesh gives your panels extra strength. You get panels that can hold more weight and last longer. The mesh also helps the panels stay together during transport and installation.
Insulation in EPS 3D panels keeps heat or cold from passing through walls. You save energy in your building. The foam core in each panel traps air and helps control temperature.
You should clean each machine often. Check for worn parts and replace them when needed. Train your workers to use the machines the right way. Good care helps your line run smoothly.
Yes, you can recycle leftover EPS. Use an EPS recycling system to crush and reuse the foam. This helps you save money and reduce waste in your factory.
