ICF Block Construction: How EPS Foam Blocks Build Stronger and More Energy-Efficient Walls

You want your building to be strong and save energy. ICF block construction uses EPS foam blocks for these benefits. Some people think ICF only works in cold places or does not last long. But these walls stay strong for hundreds of years. They work in all kinds of weather. You get strong walls, better support, and safety in bad weather. Look at how ICF saves energy:

You can trust ICF to keep your home safe and save energy.

Key Takeaways

• ICF block construction uses EPS foam blocks to build strong walls. These walls save energy and can last for many years.

• These walls can handle very bad weather, like strong winds up to 250 mph. This makes them safer than regular building ways.

• ICF homes can help people save up to 60% on energy bills. This is because they have great insulation and are sealed tightly.

• Concrete and EPS foam together make the walls resist fire very well. They can last up to four hours in a fire, while wood walls last only minutes.

• ICF construction makes less waste and lowers the carbon footprint. This makes it a good choice for the environment.

ICF Block Construction Basics

What Is ICF?

You may wonder what makes icf block construction different from other building methods. ICF stands for insulated concrete forms. You use icf blocks to build walls that are strong and energy-efficient. In icf construction, you stack hollow icf blocks made from eps foam. These blocks act as forms for concrete. You fill the forms with concrete to create a solid wall.

Here is how the icf construction process works:

1. Place insulated concrete forms by stacking each icf block. Stagger the vertical seams for strength.

2. After stacking each layer, add steel bars (rebar) inside the cavities. The rebar snaps into place in the webbing.

3. Set up a temporary alignment system to keep the walls straight.

4. Pour concrete into the forms. Use a pump to place the concrete in lifts of no more than four feet at a time. Move around the wall as you pour.

5. Use a pencil vibrator after each lift to remove air bubbles and make sure the concrete fills every space.

You repeat these steps for each story of the building. The result is a wall with a solid concrete core, surrounded by eps foam.

EPS Foam Block Design

EPS foam blocks play a key role in icf construction. You use these blocks because they are lightweight and easy to handle. The interlocking design of icf blocks makes assembly simple. Each block fits tightly with the next, so you do not need extra support. This design keeps the wall stable during construction.

The interlocking system also helps you align the blocks perfectly. You get straight, strong walls every time. The eps foam stays in place after you pour the concrete. It forms a permanent part of the wall, giving you insulation and strength.

• ICF blocks with interlocking design speed up construction.

• The design reduces mistakes and keeps the wall stable.

• You get precise alignment, which is important for the strength of insulated concrete forms.

With icf block construction, you build walls that last. The combination of concrete, steel, and eps foam gives you a wall that is strong, energy-efficient, and easy to build.

Strength of ICF Walls

Structural Integrity

You want your building to stand strong against storms, earthquakes, and daily wear. icf block construction gives you walls that are much stronger than traditional methods. icf construction uses a solid core of concrete, reinforced with steel bars. This combination creates walls that can handle extreme forces.

• icf walls can endure wind speeds up to 250 mph. This is much higher than what most conventional homes can withstand.

• During Hurricane Michael in 2018, an icf-built home stayed standing while other buildings around it collapsed.

• An icf wall is up to ten times stronger than a wood-framed structure. The solid concrete core and steel bars make this possible.

icf construction uses concrete for compressive strength. Steel bars add tensile and shear strength. You get stiffness, strength, and ductility. These properties help your walls resist earthquakes and other shocks. The exceptional ductility of steel, combined with concrete's compressive strength, gives your building strong resistance to seismic activity.

EPS foam blocks also play a role in durability. They protect the concrete core from temperature changes and physical damage. The foam blocks keep pests away from the walls. You do not have to worry about termites or insects eating through your walls.

Tip: icf construction gives you walls that last for generations. You get peace of mind knowing your building can handle tough conditions.

Resistance to Fire and Moisture

icf construction gives you walls that resist fire and moisture better than traditional methods. The concrete core does not burn. EPS foam blocks do not support flames. You get a wall that keeps your family safe.

icf walls can resist fires for up to four hours. This is six to eight times longer than wood-framed walls. You get more time to escape and less damage to your property.

Concrete also resists flooding, mold, rot, and insects. You do not have to worry about water damage or pests. EPS foam blocks add another layer of protection. They keep moisture away from the concrete core. Your walls stay dry and strong.

• icf construction gives you walls that resist fire, moisture, and pests.

• You get durability that lasts for decades.

• The combination of concrete, steel, and EPS foam blocks keeps your building safe.

icf block construction gives you walls that are stronger, safer, and more durable than traditional methods. You get the benefits of concrete, steel, and EPS foam blocks working together. Your building stands up to storms, fire, and moisture. You can trust icf construction to protect your investment.

ICF Wall Efficiency

Insulation Performance

You want your building to feel good in every season. ICF construction helps by putting insulation on both sides of the wall. EPS foam blocks make a barrier that stops heat from coming in or going out. This keeps your building strong and saves energy.

• ICF construction covers the whole wall with insulation. There are no weak spots for heat to escape.

• The concrete core acts like a battery for heat. It holds heat during the day and lets it out slowly at night. This keeps the inside temperature steady.

• Insulation on both sides stops thermal bridging. Heat cannot move straight through the wall, so you save more energy.

This wall system works in hot and cold places. The insulation and concrete core work together to keep you warm in winter and cool in summer. You can save up to 60% energy compared to regular walls. The r-value stays high because the insulation does not have gaps.

Note: Continuous insulation in icf construction keeps your building strong. You do not lose energy through cracks or holes.

Energy Cost Savings

ICF construction helps you spend less on heating and cooling. The walls are airtight and have no seams, so air does not leak out. Your HVAC system does not need to run as much to keep you comfortable. This means lower energy bills and better results.

• Boulder Farms Townhomes in Rhode Island used icf construction. They used almost 50% less energy than wood homes.

• The Net Zero Amvic ICF Home in New Brunswick got Net Zero certification. It needed much less energy for heating and cooling.

• Orchard Park Terrace Homes in British Columbia used icf construction for affordable homes. People there had low heating costs and steady temperatures inside.

The concrete core in icf walls soaks up heat and lets it out slowly. This stops quick changes in temperature and keeps humidity low. You get a steady indoor climate and feel more comfortable.

ICF homes do not let air leak out. This makes them use less energy, but you need good ventilation. Many icf buildings use special HVAC systems to control humidity and bring in fresh air. These systems help keep the air healthy and save energy.

You see the good things about icf construction in your energy bills. The insulation, airtight walls, and concrete core all help. You get high energy savings, better comfort, and a building that feels good all year.

ICF Construction vs. Traditional Methods

Strength Comparison

You want your building to last a long time. You also want it to protect you from storms and daily damage. icf construction makes walls much stronger than wood framing or cinder blocks. These walls have a solid concrete core with steel bars inside. This makes them stronger than wood or block walls. Wood framing can bend or break in strong winds. Cinder blocks can crack if there is too much pressure. icf block construction can handle high winds, earthquakes, and heavy loads.

You do not need mortar when you use icf construction. The blocks fit together and stay in place. You pour concrete inside, and the wall becomes one solid piece. This makes the wall stronger and less likely to crack. You can feel safe knowing your building can handle tough weather.

Efficiency Comparison

You want your building to save energy and keep you comfortable all year. icf construction is better at this than traditional methods. You get insulation on both sides of the concrete core. This keeps heat inside during winter and outside during summer. Wood framing and cinder blocks use insulation in the wall space. This can leave gaps and weak spots.

Here is how icf construction compares to traditional wall systems:

icf construction also helps you save time and money. You can build the walls and add insulation at the same time. For example, you can build a 2,800 sq ft icf home in just four days. Pouring the concrete only takes eight hours. Building the same home with wood framing can take seven or eight weeks. You do not need special masonry workers. The blocks are light and easy to move.

Tip: icf construction lets you design your building any way you want. You can make arches, curves, and big windows. You can use any outside finish, like brick, stucco, or siding. This helps you build the home or business you want.

icf block construction gives you walls that are stronger, more efficient, and faster to build than traditional methods. You get the benefits of concrete, insulation, and design choices all in one system.

Additional Benefits of ICF Walls

Environmental Impact

You want to help the planet and make a difference. icf construction has many good effects on the environment. You use icf blocks made from EPS foam. These blocks are light and easy to move. This means you do not need big machines. It also costs less to move them. You can finish building faster and make less trash.

Many icf systems use more than 60% recycled stuff. All parts of icf walls can be recycled. This helps keep trash out of landfills. It also supports taking care of the earth. California Senate Bill 596 asks for less carbon in concrete. icf construction meets these rules and helps lower your building’s carbon footprint.

You can see the good things for the environment in these numbers:

You use icf construction to put structure and insulation together. This means you need fewer extra materials and less work. EPS foam blocks are up to 100 times lighter than old fills. You can put them in place fast. You do not need big earth-moving machines. You help the earth by using less energy and making less trash.

Soundproofing and Comfort

You want your building to be quiet and cozy. icf construction gives you walls that block noise and keep things peaceful. The concrete core and EPS foam blocks work together to stop sound. You hear less traffic, neighbors, or outside noise.

The sound transmission class (STC) rating shows how well walls stop sound:

icf walls are better than what the U.S. building code asks for party walls. You get ten times more sound protection than wood walls. Only one-eighth as much sound gets through as with wood frame walls.

You also get better air inside. icf construction makes walls airtight. You control the air and keep bugs out. You lower the chance of mold and keep your building healthy. The concrete core and insulation slow down temperature changes. You stay comfortable even if the power goes out or the weather is bad.

• icf construction keeps outside air out and your air clean.

• You stop mold and bugs, so your building is safer.

• The concrete and insulation keep temperatures steady.

You pick icf construction for a quieter, healthier, and more comfy building. You enjoy these good things every day.

Choose Fangyuan for EPS and EPP Machines

Trusted by Builders and Developers

You want your icf construction project to do well. You need machines that are strong and last a long time. Many builders and developers pick Fangyuan for their icf and building jobs. Fangyuan has won awards and earned certifications. These show you get good machines and help for your projects.

You want to work with a company that leads the way. Fangyuan has over 50 patents. This includes 45 patents and 5 inventor patents. You know you get new technology for your icf construction.

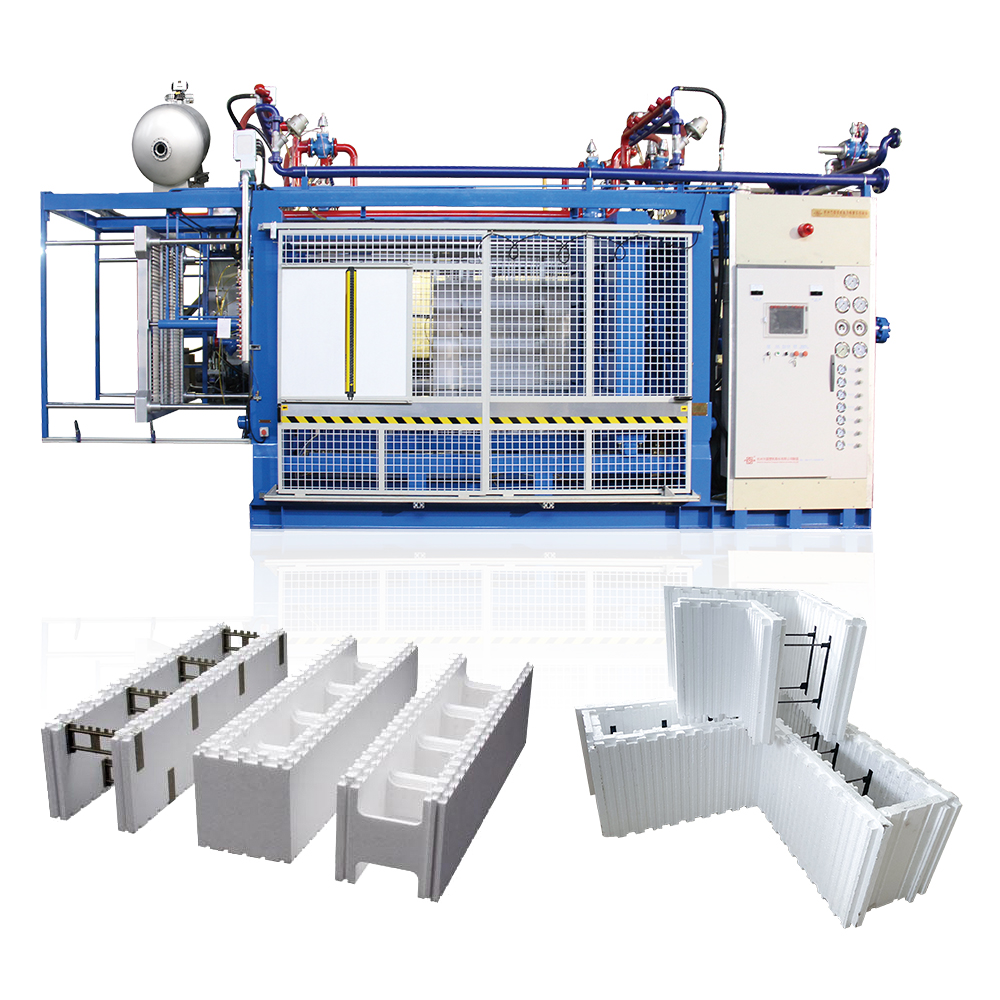

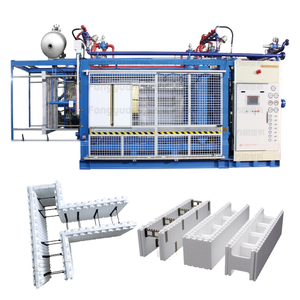

EPS and EPP Machines for B2B Construction

You need machines that help you build strong icf walls. Fangyuan’s EPS and EPP machines are made for big building jobs. These machines have features that make your icf construction faster and better.

• EPS foam machines use steam to make beads bigger and shape them. You get strong and steady icf blocks for your building.

• EPP foam machines use more steam pressure and cool for longer. You can make tough parts for icf construction and other things.

• You use EPS for cold-chain shipping, electronics, and store packaging. You use EPP for car parts and factory pieces.

Fangyuan helps you at every step of your icf construction. You get help with planning, setting up, and running your factory. You also get help with technical problems. Fangyuan’s service is special because you get fast start-up, steady work, and help with hard projects.

About Hangzhou Fangyuan Plastics Machinery Co., Ltd

We at Hangzhou Fangyuan Plastics Machinery Co., Ltd want you to do well in icf construction. We make EPS and EPP machines for your building jobs. We have ISO9001:2015 and CE certifications. We have over 50 patents. We help you with planning, setting up, and after-sales service. You can look at our turn-key plant solutions, service options, product range, and EPS machines for your icf construction. You can contact us to see how we can help with your next icf building project.

You can see that icf block construction with EPS foam blocks makes walls stronger and saves more energy. Here are some good things you get:

• icf blocks help keep heat in or out and cut energy bills.

• icf homes have a high R-value, so you get better insulation and feel more comfortable.

• icf systems help you spend less on heating, cooling, and fixing things.

You get a home that is safer, quieter, and more comfortable. Builders and people who own homes like icf because it is strong, saves energy, and helps control costs. If you want to know more or try icf, look at these resources:

Fangyuan helps you with your icf projects by giving you certified EPS and EPP machines. Our machines have ISO9001:2015 and CE certifications and more than 50 patents. You can check out our turn-key plant solutions, service options, product range, and EPS machines for your icf projects.

FAQ

What makes icf walls different from regular walls?

You build icf walls with concrete and EPS foam blocks. These walls have insulation on both sides. You get stronger walls and better energy savings compared to wood or block walls.

How long do icf walls last?

You can expect icf walls to last for hundreds of years. The concrete core and foam blocks resist rot, pests, and weather. You do not need to worry about frequent repairs.

Are icf walls safe in a fire?

You stay safer with icf walls. The concrete core does not burn. EPS foam blocks do not support flames. Icf walls can resist fire for up to four hours.

Can you use icf in any climate?

You can use icf in hot, cold, wet, or dry places. The insulation and concrete core keep your building comfortable. Icf works well in all weather conditions.

Does icf help reduce noise inside my home?

You enjoy quieter rooms with icf walls. The concrete and foam block layers block outside sounds. Icf walls have high sound ratings, so you hear less traffic and neighbor noise.
